Multiple People Lightweight Travel Trailer AL-Ko Chassis 4-6 Person Camping Trailer
| Place of Origin | Zhengzhou, China |
|---|---|
| Brand Name | JAEN |
| Certification | CE ROHS |
| Model Number | JAEN-DE480-6 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Packaging Details | Durable PVC bag and cartons for accessories |
| Delivery Time | 10-15 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 50 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Shop Trailer | Use | Travel Caravan Trailer |
|---|---|---|---|
| Number Of People | 4-6 People | Material | Glass Fiber Reinforced Plastics |
| Guide Wheel | AL-KO Guide Wheel | Brake System | AL-KO Mechanical Impact Brake |
| Color | Customized | OEM | Acceptable |
| Highlight | Multiple People Lightweight Travel Trailer ROHS,Lightweight Travel Trailer AL-Ko Chassis,4-6 Person Camping Trailer |
||
Product Description

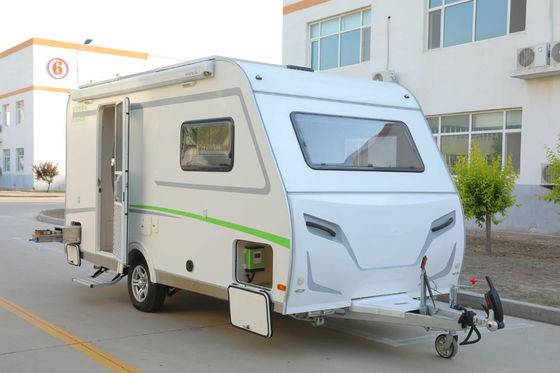

Travel For Multiple People Lightweight Travel Trailer AL-Ko Chassis 4-6 Person Camping Caravan
Specification:
| Overall dimensions | 5905*2210*2616(mm) | Tire specifications | 185R14C |
| Internal dimensions | 4700*2050*1950(mm) | Guide wheel | AL-KO guide wheel |
| Car body material | Aluminum alloy lightweight skeleton sandwich box (filling process) | Brake system | AL-KO mechanical impact brake (with parking brake) |
| Chassis | Special galvanized steel chassis for 510L car beams (three section multi bolt connection) | Number of tires | 2pcs+1 Spare tire |
| Vehicle mass | 1440kg | Tire pressure | 0.35-0.45Mpa |
| Axle | German AL-KO shock absorber shaft | Minimum ground clearance | 238mm |
| Driving form | Traction type | Best number of residents | 4-6 people |
Description:
This JAEN-DE480-6 model is specially designed for multiple people. It adopts the appearance design of European motorhome. The body is composed of fiberglass, insulating foam and aluminum alloy framework, which has better sound insulation and heat insulation performance. At the same time, it is also an environmental protection material with high strength, compression resistance, water and moisture resistance. The body size is 5905 * 2210 * 2616mm, with a box size of 4700 * 2050 * 1950mm and a curb weight of only 1440kg.
The chassis adopts a 510L galvanized steel chassis specifically designed for the car's main beam, which is connected with three sections of multiple bolts for better hard force release. It is equipped with an AL-KO collision brake mechanism, an AL-KO torque shaft, and an AL-KO damping and shock absorption system, reducing the impact on the front car, and maximizing the comfort and safety.
The front of the car features a variable two meter bed, and the rear of the car features an electric lift bed with a pair of card seats, with a privacy sliding door in the middle.
Details pictures:
If you want to get more details, please contact us freely.
